Product Code: KRFF015T

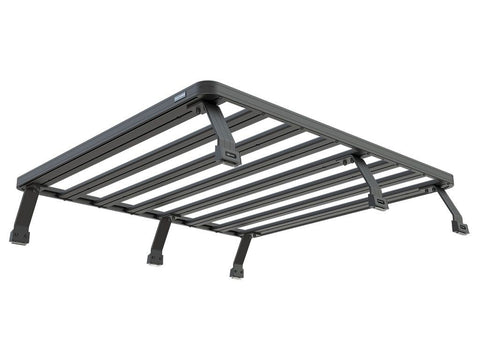

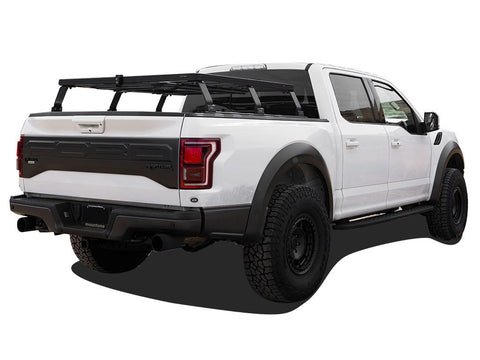

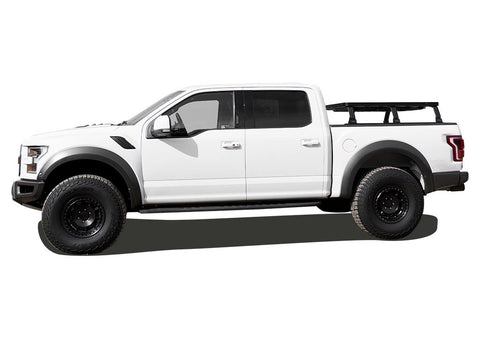

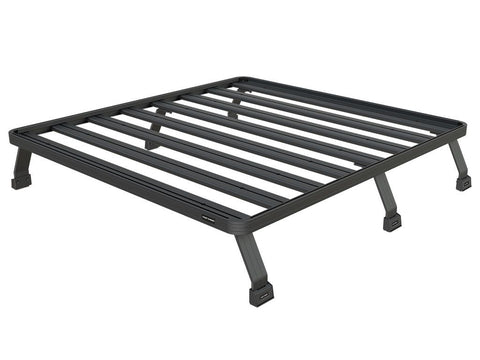

This kit creates a full-size rack that sits above your Ford F150’s (2015 +) 6.5' load bed with roll top. This Slimline II cargo carrying rack kit contains the Slimline II tray (1475mm x 1560mm) and 6 Pickup Truck Bed Universal Legs that fit into the existing roll top rails.

INFO

This kit creates a full-size rack that sits above your Ford F150’s (2015 +) 6.5' load bed with roll top. This Slimline II cargo carrying rack kit contains the Slimline II tray (1475mm x 1560mm) and 6 Pickup Truck Bed Universal Legs that fit into the existing roll-top rails.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: If your Roll Top extrusion has a 6mm (0.24") to 7mm (0.28") slot opening, you may need Track Mount Stud Plate for installation.

SPECS

KRFF015T - Ford F150 (2015-Current) Roll Top 6.5' Slimline II Load Bed Rack Kit - by Front Runner

Consisting of:

3x LASS026 - Universal Load Bed Leg / Tall (Pair)
3x LASS027 - Leg Spacer 6mm (Pair)
3x LASS028 - Pick-Up Roll Top Leg Mount
1x RRSTM08 - SLII Tray - 1475mm(W)X1560mm(L)

Material Used:

Black epoxy powder-coated T6 aluminum

High strength steel

Approximate Installed Weight: 37.1kg (81.79lbs)

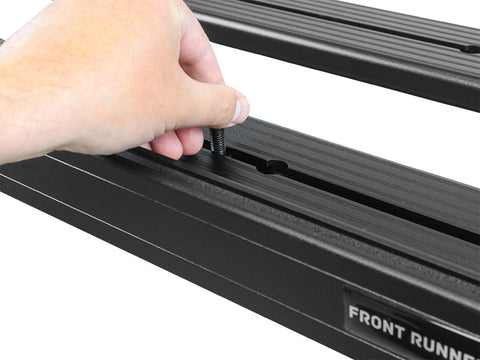

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicle's roof.

Shipping Dimensions:

Width: 455mm (18")

Length: 1730mm (68")

Height: 265mm (10")

Shipping Weight:

Weight: 37.9kg (83lbs)

FORD F150 (2015-CURRENT) ROLL TOP 6.5' SLIMLINE II LOAD BED RACK KIT - BY FRONT RUNNER
